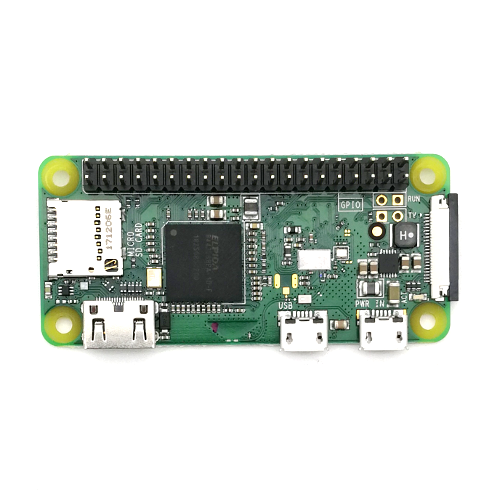

The Raspberry Pi Zero WH is another member of Raspberry Pi Zero family. It adds Wireless connectivity and comes with pre-soldered 40-pin Header, hence the WH designation.
The Raspberry Pi Zero family is the smallest, slimmest and lowest cost Raspberry Pi to date. It's about half of the Pi A+ size. It comes with a mini HDMI port for audio/video instead of the regular HDMI port on other models. There is no standard USB port, but there is a micro USB OTG port instead. With a USB OTG cable, you can use a regular USB device with Pi Zero. If you need to use more than one USB device, you can consider to get a USB hub like this that you can plug directly to the micro USB OTG port. The Pi Zero maintains the same GPIO pinout as other models. Like the Pi Zero Version 1.3, the Pi Zero WH has a camera port for the official Raspberry Pi camera board. However, you need to use a different camera cable since is connector is not the same as the other models and the standard cable will not work.
The Pi Zero WH uses the same micro SD card as its main drive/storage. It also uses the same micro USB 5V power supply.
Features:
Broadcom BCM2835 1GHz Single-core Processor
Integrated Videocore 4 Graphics Processing Unit (GPU) capable of playing Full 1080p High Definition Video
512MB RAM
40-pin 2.54mm pre-soldered header for GPIO Expansion Slot (Which allow for low-level peripherals and expansion boards)
Wireless connectivity
802.11 b/g/n wireless LAN
Bluetooth 4.1
Bluetooth Low Energy (BLE)
Additional specs:
mini HDMI port
1x micro USB OTG port
5V micro USB power input jack
Camera Serial Interface (CSI) connector (recommended accessory: Camera cable adapter)
micro SD card slot (push-pull style)
Size: 65mm x 30 mm x 5 mm
Recommended accessories:
These are highly recommended accessories to make your Pi Zero WH works.
