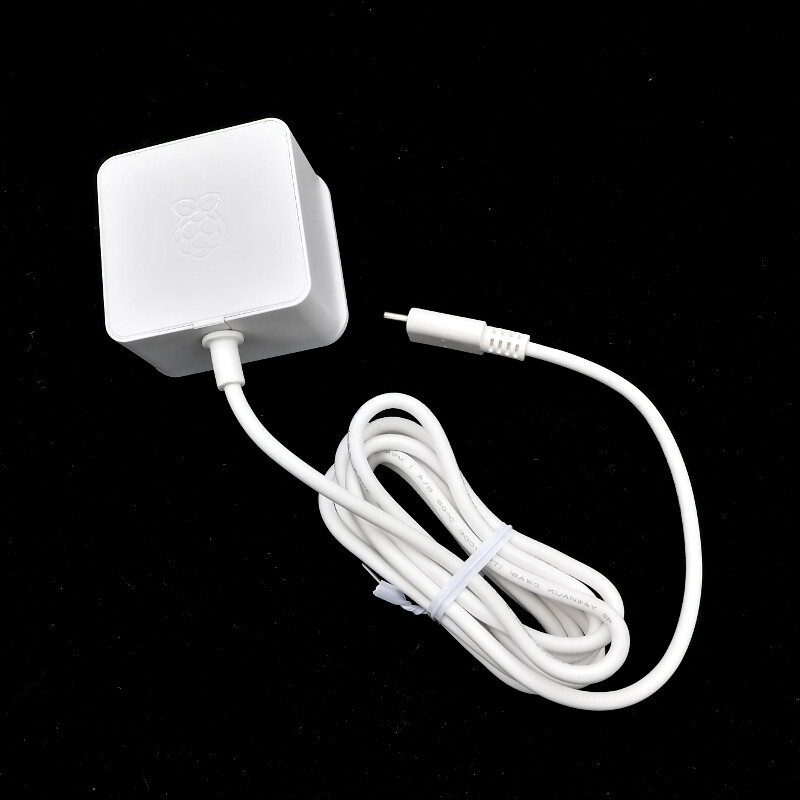

This is the official Raspberry Pi power supply with USB Type C plug designed for Raspberry Pi 4. The DC output is bumped up to 5.1V, 3A to provide enough power for your Raspberry Pi. It comes in white colour and Raspberry Pi logo engraved on it. Overall, this is a high quality product with 18AWG thick cable to ensure good power delivery.
The power supply has a fixed 3-pin Type G plug which is a standard plug in Malaysia, United Kingdom, Singapore, Hong Kong etc. It accepts 100-240V AC voltage input.
The cable length is 1.5m giving you more room to move your Pi away from the wall plug. This power supply can also be used with other boards with USB-C power connector. It is a recommended power supply for Jetson Nano 2GB Developer Kit and Beaglebone AI.
This product is not suitable for older Raspberry Pi 3 and below model that uses micro USB connector for power.
Specification:
Output
Output voltage: +5.1V DC
Minimum load current: 0A
Nominal load current: 3.0A
Maximum power: 15.3W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for DC outputs
Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
Protection: Short circuit protection, Overcurrent protection, Over temperature protection
Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%), 72% minimum at 10% load
Output cable: 1.5m 18AWG
Output connector: USB Type-C
Input
Voltage range: 100-240Vac (rated), 96-264Vac (operating)
Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum
Power consumption (no load): 0.075W maximum
Inrush current: No damage shall occur and the input fuse shall not blow
