** Suitable for ASUS Tinker Board external Wifi antenna connector **

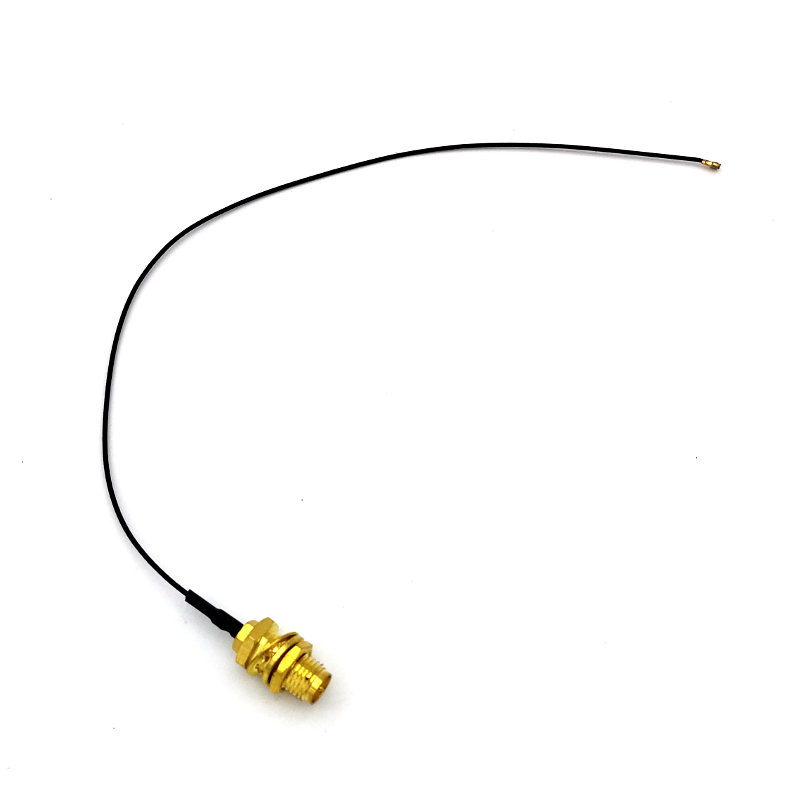

This cable adapts MHF4 IPX connector to RP-SMA so that you can use an antenna with RP-SMA connector to boost the RF signal. The length of the cable is about 20 cm and the diameter is 0.81 mm, very thin and flexible. The female RP-SMA connector has thread on the outside and center needle (pin) which you can screw in to the matching antenna. A spacer and a nut is included for panel mounting. To install it, carefully snap on the female MHF4 connector to the male MHF4 connector on the PCB. Take note that the MHF4 IPX connector is very delicate and not designed for frequent insertion and removal.
You can use this cable with many RF devices that have MHF4 connector especially for Bluetooth and WiFi applications. ASUS Tinker Board is using MHF4 receptacle for external Wifi antenna connection. Pay close to the gender and connector type. Look closely to the image in the gallery to avoid buying the wrong connector.
We also stock the SMA version of this adapter.
Technical details:
Connector: MHF4 IPX to RP-SMA (outside thread, center needle)
