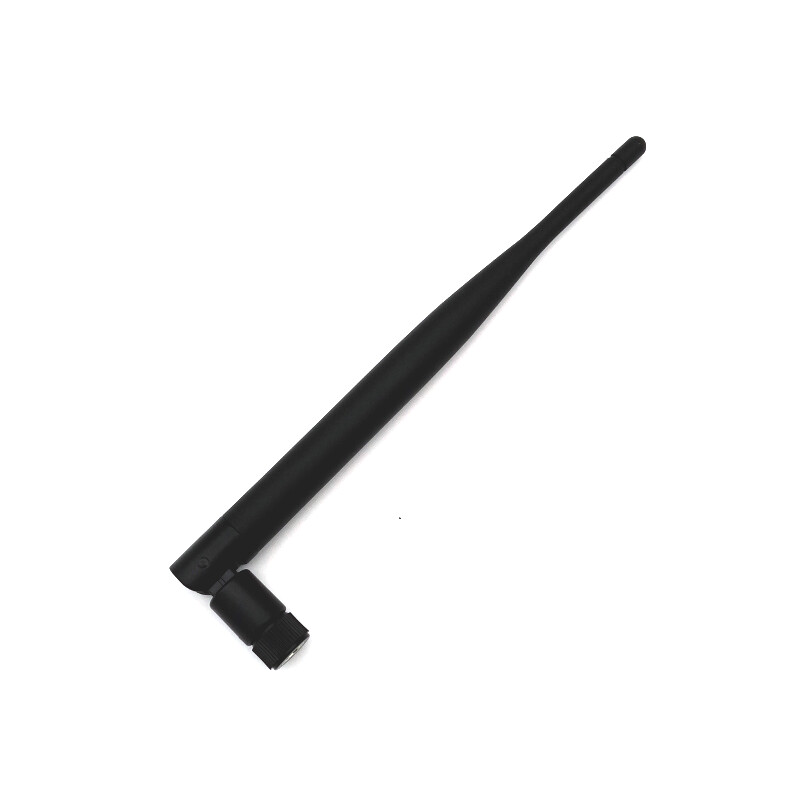

This antenna works with 2.4GHz band wireless equipments such as Wifi routers and access points. The overall length is 195 mm. It has tilt and swivel design. You can adjust the direction to use the antenna vertically, at a right angle or 45 degrees in between.
The antenna has RP-SMA connector type with inner thread and center receptacle. Therefore, it only works with equipment with matching RP-SMA connector. The installation is simple. Just screw in the antenna to the connector on the equipment.
Most WiFi routers and access points use RP-SMA connector. Please check carefully the close-up picture in the gallery and make sure it matches with your equipment.
Take note that the physical design of the antenna might change without notice.
Technical details:
Antenna gain: 5dBi
Applicable band: 2.4GHz ~ 2.4835GHz
VSWR: 1.92: 1 maximum
Input impedance: 50Ω
Maximum power: 50W
Connector Type: RP-SMA (inner thread, center receptacle)
