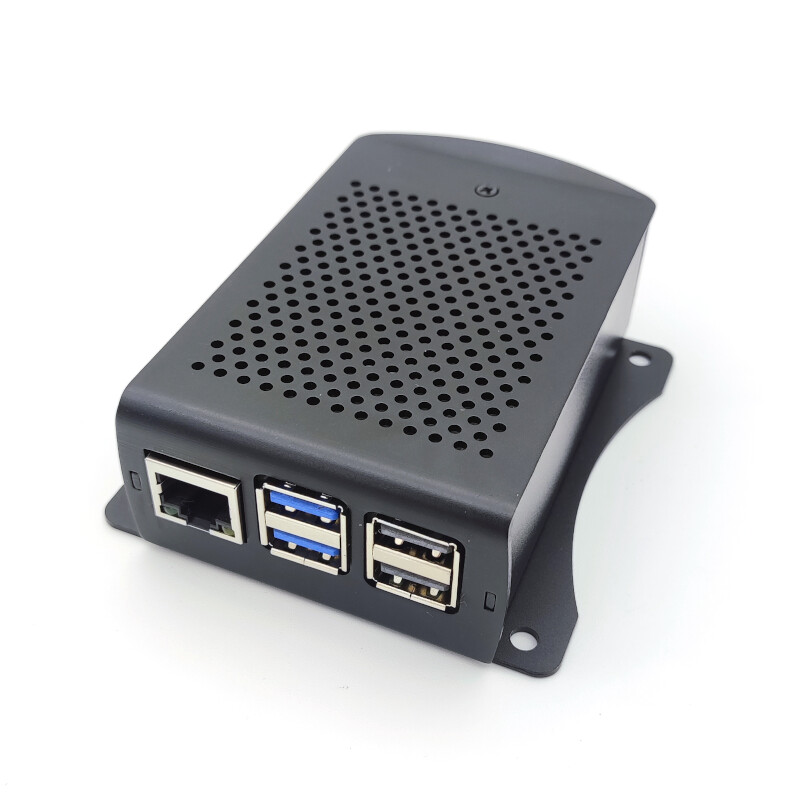

This full aluminum enclosure for Raspberry Pi 5 Single Board Computer (SBC) is designed for industrial environment but it is also a great all rounder case for any user. It has removable tabs with 4 mounting holes to secure the case on any surface. The mounting holes are arranged in 75 x 75 mm square hole pattern. You can also mount the case at the back of any VESA MIS-D 75mm compliant monitor. VESA mounting screws are not included. You can get a set of M4 screws from our store. This is a common screw size for VESA mounting.

The case is made of 2 pieces of spray-painted aluminum, held together by a single screw. The SBC board is mounted to the base, secured by 4 screws. All major ports (USB, ethernet, USB-C power, micro HDMI and power switch) are accessible. There is also cut-out for micro SD card and an opening at the side of the case where you can slot out GPIO wires and camera ribbon cable. This case is well ventilated with perforated holes at the top and bottom. If you are looking for an active cooling solutions (which is highly recommended), this case has enough clearance to fit it a heatsink and active cooling fan such as this which is sold separately at our store.

Screws for assembling the case are included.

Dimension (w x d x h): 63 x 95 x 33 mm (without mounting tabs), 84 x 95 x 34 (with mounting tabs)
