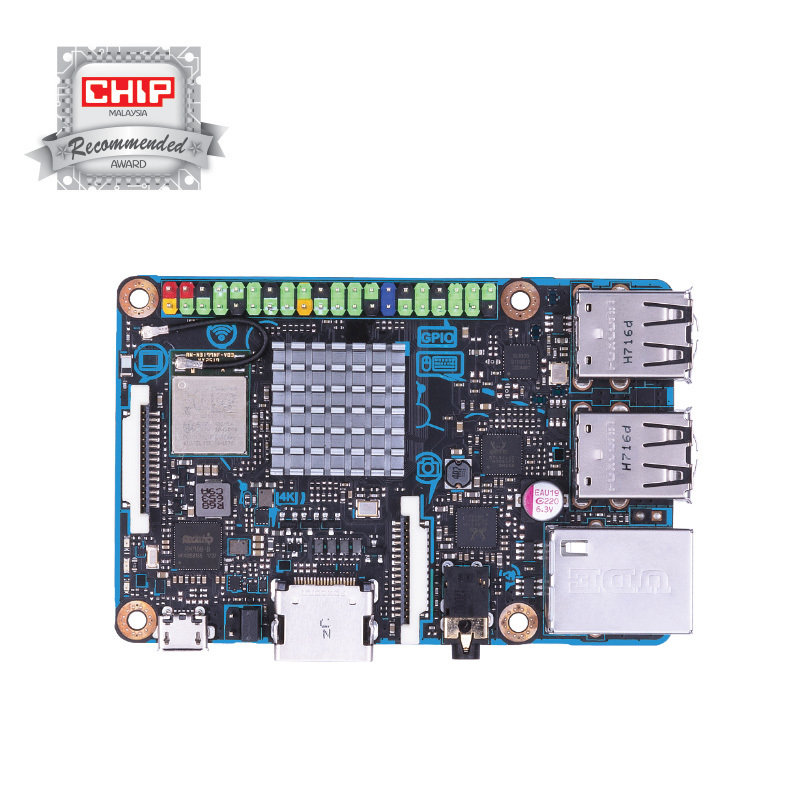

Tinker Board S is a new version of ASUS Tinker Board Single Board Computer. These are the improvements compared to the older model:
16GB eMMC on-board storage - The eMMC runs at a much higher speed compared to the regular micro SD card. The micro SD card slot is still present. You can use it as usual or use both eMMC and micro SD card.
Header pin for power-up/shutdown - You can connect a momentary switch to the power header so that you can trigger boot up or shutdown from it.
Low voltage detection - Low voltage icon will show up to alert that you have a power issue.
HDMI CEC ready - This allows you to use your existing TV remote to control the Tinker Board.
Audio jack plug-in detection - This allows application to automatically change the sound output when you plug in a headphone or speaker to the 3.5mm audio jack.
Software
The Tinker Board S can run different type of Operating System making it one of the most versatile board in the market. To install OS to the on-board eMMC, you need to connect the board to a computer using a micro USB cable (not included).
ASUS offers two OSes: a Debian/Linux and Android 6.01 Marshmallow based TinkerOS. Download link here.
Community support for this board has also been encouraging with many TinkerBoard-release for community-driven OS.
Armbian - linux Ubuntu for ARM-based development boards
DietPi - a lightweight Debian/Linux OS, suitable for server applications
Volumio - open audiophile music player, internet radio and music streamer
ARM Mali-T764 GPU supports Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL, DirectX11
Display
1 x HDMI*
*HDMI CEC Hardware Ready
1 x 15-pin MIPI DSI supports up to HD
Memory Size
Dual-CH LPDDR3 2GB
Storage
*Onboard 16GB eMMC Micro SD(TF) card slot
Connectivity
RTL8211E-VB-CG GB LAN
802.11 b/g/n wireless & BT 4.0 + EDR
Audio
RTL HD Codec with 1 x 3.5mm audio jack *Supports Plug-in Detection and Auto-Switch
USB
4 x USB 2.0 ports
Camera Interface
1 x 15-pin MIPI CSI slot for camera
Internal Headers
1 x 40-pin headers includes:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin contact points includes:
- 1 x PWM signal
- 1 x S/PDIF signal
Power Connector
Micro USB power input** *Supports low voltage input detection
OS Support
Linux / Android
Dimension
3.37" x 2.125"
*HDMI supports a maximum resolution of up to 4K (upscaled 1080p), and the iGPU supports H.264/H.265 4K hardware decoders.
**Suggest to use 5V/~3A USB power adapter.
Package content:
ASUS Tinker Board S, Passive heatsink, User manual
Warranty: 1 year
Optional accessories (by third party):
At the very minimum, to run a Tinker Board S you'll need:
Power supply - stable power supply with micro USB connector which able to deliver at least 3A at 5V
micro SD card (optional) - micro SD card with Linux or Android OS installed
