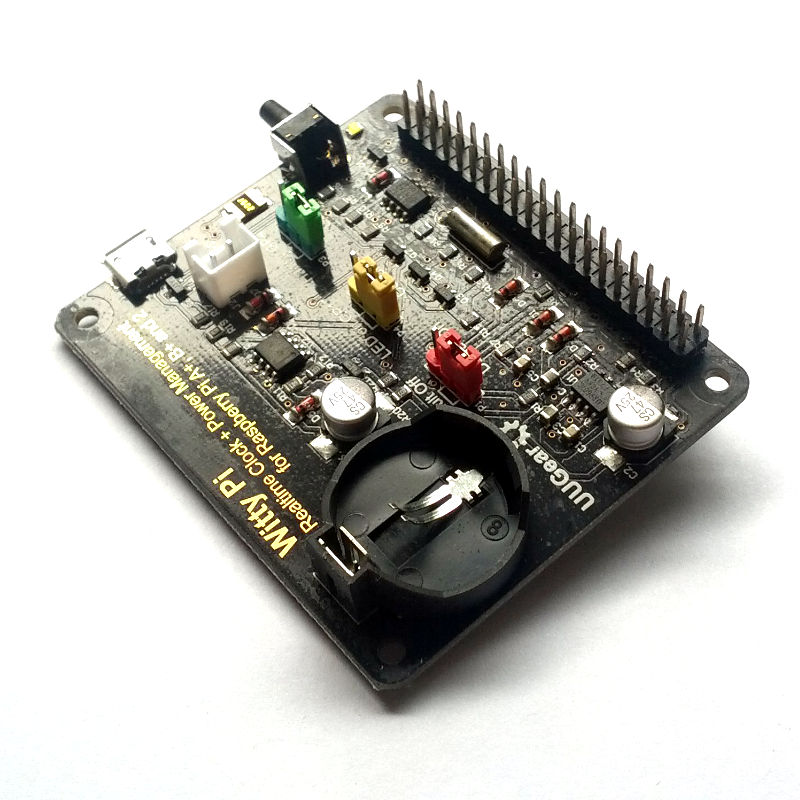

Witty Pi is an add-on board for Raspberry Pi with a Real Time Clock (RTC) and power management capabilities.
The "HAT-sized" board plugs directly on top of a Raspberry Pi and can be secured using the included screws and standoffs. An extended GPIO header was put on top so that you can use GPIO for other purpose. There is a micro USB port for power connection. This will power both the board and the Raspberry Pi. Alternatively, there is a 2-pin header for you to connect 5V power. This is handy for battery connection.
Once you plug in the power, you can see the LED indicator glowing steadily. There is a power switch on board. Press the switch and it will boot your Raspberry Pi. If you do a proper shutdown by typing sudo shutdown -h, Witty Pi will cut the power to your Pi after the shutdown sequence is completed. With the software scripts installed, you can have a proper shutdown by just a tap to the switch. This physical power switch is a great feature especially when you run your Pi "headless" without any connnection to a monitor, mouse and keyboard.
With the Real Time Clock (RTC) chip and a backup battery on-board, you can keep the time on the Raspberry Pi accurate even when it is not powered. The RTC also gives you scheduling capability to start-up or shutdown your Pi automatically.
Witty Pi can work with Raspberry Pi 3 Model B, Pi 2 Model B, Model B+ and Model A+.
For software installation, please refer to the user manual (link below).
Features:
Plugs directly on top of the Raspberry Pi. Extended GPIO headers that you can use for other purpose
Properly power ON/OFF your Raspberry Pi with just a single press on the switch - great for headless setup. No need to login to type shutdown command
A total power cut to the Raspberry Pi after shutdown. This includes power to the USB ports - no more fiddling with power switch
A Real Time Clock (RTC) on board to keep time accuracy even if the Pi is powered off and not connected to the internet - great for applications which depends on time accuracy
Automatically startup or shutdown your Pi at a predefined time - you can build a scheduler to wake-up and shutdown your Pi when you want
Software scripts are available - You can use them as it is or adapt to suit your purpose
Specifications:
Dimension: 65mm x 56mm x 19mm
Weight: 23g (net weight without battery)
LED Indicator: One, for halt and stand by breathing
Connector: 40-pin dual row 2.54 mm pitch female & male header
Battery: CR2032 or CR2025 (for time keeping)
Power In: DC 5V (via micro USB port or white power jack)
Output Current: Maximum 2A for Raspberry Pi and its peripherals
