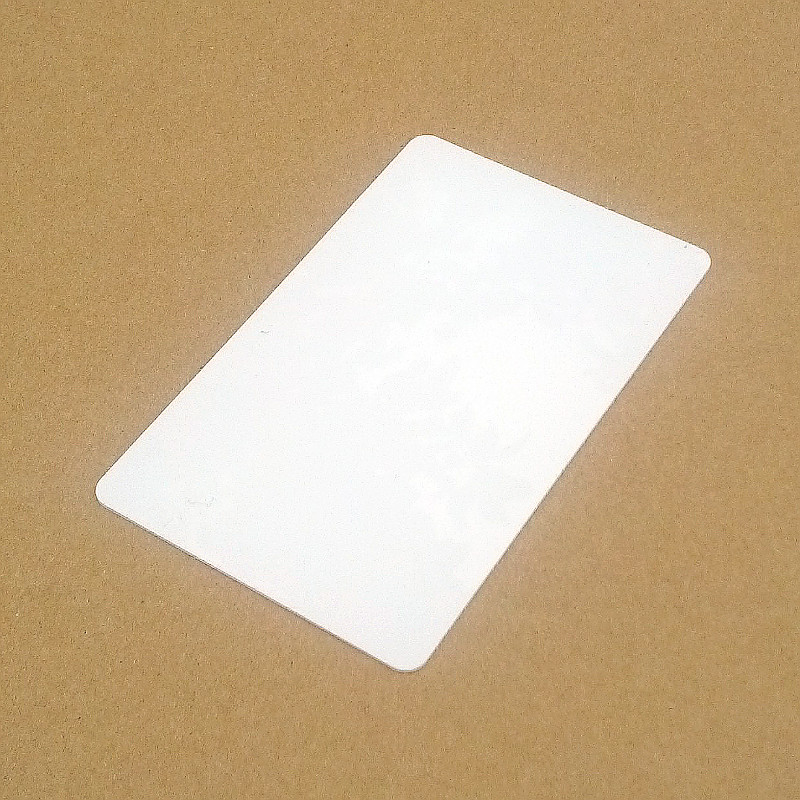

A plain white PVC card with Ultralight EV1 chip embedded. Ultralight EV1 is designed as a cost effective solution for ticketing, loyalty program and access control. This card has to be NDEF-formatted to make it compatible with NFC Forum Tag Type 2, ensuring compatibility across all NFC devices.

Tag Specifications:

• Dimension: 85.5mm x 54mm x 0.84mm, ISO Size
• Colour: White
• Material: PVC
• Anti-metal: No
• Water resistance: Yes
• Key features:
  • Low cost and NFC Forum Tag Type compatible

NFC Chip Specifications:

• IC: NXP MIFARE Ultralight EV1 (MF0UL11)
• Operating frequency: 13.56 MHz (HF)
• Memory Size: 48 bytes (384 bits) arranged in 12 pages with 4 bytes per page
• Factory NDEF formatted: No
• UID: 7-byte, not changeable
• Standard: ISO14443A
• NFC Forum Type Tag: Type 2
• Read/write endurance: 100,000 cycles
• Data retention: 10 years
• Additional features:
  • 3 independent one-way counters
  • Password protection
