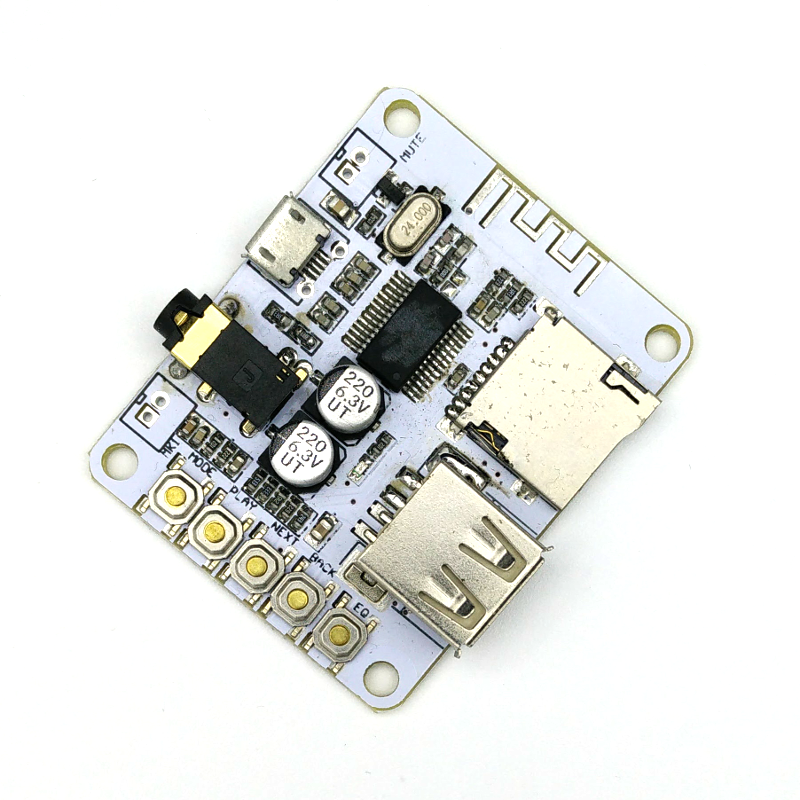

This is a compact MP3 player/decoder board which can play MP3 audio file from a removable media without having to connect to a micro controller. It also has Bluetooth receiver functionality where music can be streamed from another media player to this module via Bluetooth. Great for hacking, this module can be embedded to your project.
User control is performed using 5 push-buttons on board. Depending on the button, a different function is triggered by short pressing or long pressing it. A long press is defined by holding the button for at least 2 seconds.
The board supports two type of removable media - micro SD card or USB drive. Upon powering it up, the board will try to play from the USB drive by default. If no USB drive present, it will play from the micro SD card. If both type of removable media is not present, it will turn on the Bluetooth connection and wait for pairing with other Bluetooth device. You can switch media type by pressing the "Mode" button. This module recognize MP3, WMA, WAV and FLAC file format. The media has to be formatted as FAT32.
To get the sound output, you can plug a headphone or an external speaker to the 3.5mm audio jack.
The board can be powered using standard micro usb cable from a portable battery or USB wall plug.
* Removable media is not included
Features:
Power:
micro USB port - standard 5V from micro USB power (power bank, wall plug etc.)
Status LED:
blinking red - playing mode
steady red - pause mode
User control buttons:
MODE - short press to switch input mode between USB drive (default, if available), micro SD card or Bluetooth
PLAY - short press to play music. short press again to pause
NEXT - short press to play next file. Long press to turn the volume up
BACK - short press to play previous file. Long press to turn the volume down
EQ - Change to different equalizer mode
Removable media support (Format as FAT32. MP3, WMA, WAV, FLAC files are supported):
micro SD card
USB thumb drive
Stream music from other media player via Bluetooth
Sound output:
3.5mm audio jack - can be connected to headphone or external speaker, gold plated
