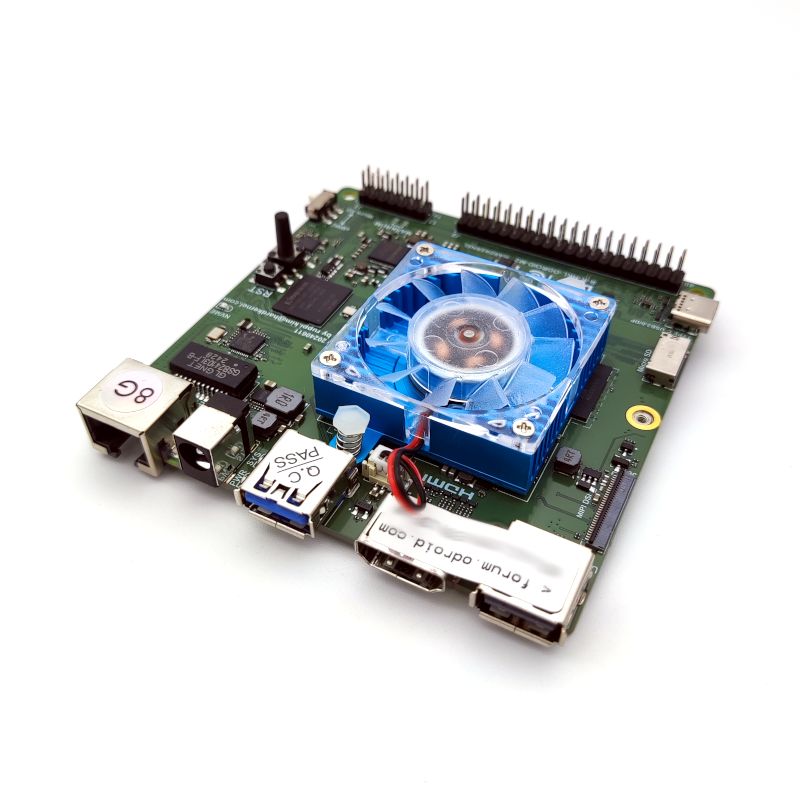

The Odroid-M2 is a high performance SBC powered by Rockchip RK3588S2 CPU and with an option of 8GB or 16GB RAM (LPDDR5) on board memory. This board supports micro SD card, eMMC, SATA 3.0 or M.2 NVME SSD devices as its storage.
This board comes with an on-board 64GB eMMC storage, soldered to the PCB. To avoid thermal throttling for such a high-performance board, a heatsink with cooling fan is also attached to the processor. The speed of the fan is PWM-controlled. As an added value, this board comes with a durable case to protect the board from harmful elements.
A Linux bootloader called Petitboot is pre-installed to simplify multi-OS boot on different storage devices. It also supports on-the-fly OS downloading and installation via network (ethernet).
** BONUS: A CR2032 RTC coin cell battery is included for free (while stock lasts) for all delivery within Peninsular Malaysia. Unfortunately due to air shipping restrictions, we cannot include it for other destinations.
Board Dimensions: 90mm x 90mm x 21mm
Weight: 78g including heatsink, 58g without heatsink
Processor
Rockchip RK3588S2 Processor
Quad-Core Cortex-A76 (2.3GHz +/- 0.1Ghz)
Quad-Core Cortex-A55 (1.8GHz)
ARMv8-A architecture with Neon and Crypto extensions
Mali-G610 GPU MP4 (1Ghz)64KB L1 instruction cache, 64KB L1 data cache, 512KB L2 cache, shared by Cortex-A76 processor
32KB L1 instruction cache, 32KB L1 data cache, 128KB L2 cache, shared by Cortex-A55 processor
L3 data cache: 3MB, shared by 8 processors
NPU
6 TOPS@INT8, Integrated AI accelerator RKNN NPU
Memory
LPDDR5 8 or 16GiB with 64-bit bus width
Storage
1 x 64GB eMMC embedded (soldered to the PCB)
1 x Micro SD slot (UHS-I SDR104)
* Boot priority between eMMC and microSD can be selected with the slide switch
1 x NVME M.2 SSD (PCIe 2.1 x 1 lane)
Networking
1 x GbE port (RJ45, supports 10/100/1000 Mbps)
– LED indicators
* Green LED: Flashing by data traffics at 100Mbps connection
* Amber LED: Flashing by data traffics at 1000Mbps connection
Video output
1 x HDMI 2.0 (up to 4K@60Hz with HDR, EDID)
1 x MIPI DSI Interface (30pin connector which is different from 31pin of the ODROID-M1)
1 x DP (via USB Type-C port)
External I/O
1 x USB 2.0 host port
1 x USB 3.0 host port
1 x USB 3.0 Type-C (Data communication and DP Alt-Mode, Not a power source/sink)
1 x Debug serial console (UART)
1 x 40 pin GPIO and 1 x 14 pin GPIO
Real Time Clock
* On-board very low power PCF8536 RTC chip
* CR2032 RTC backup battery holder to keep time and date for near 10 years without main power input
Other features
* Power button
* Reset button
* System LED Indicators:
– Red (POWER) – Solid light when DC power is connected
– Blue (ALIVE) – Flashing like heartbeat while Kernel is running. Solid On in the u-boot stage.
Power
1 x DC jack: outer (negative) diameter 5.5mm inner (positive) diameter 2.1mm
DC input voltage range: 7.5V ~ 15.5V (12V/2A power adapter is recommended)
– IDLE : ≃ 1W without any kind of peripherals
– CPU Stress : ≃ 7.5W (Performance governor) without any kind of peripherals
– Power Off : ≃ 0W
