Released in 2022, the Odroid-M1 is an SBC powered by Rockchip RK3568B2 CPU and with an option of 4GB or 8GB RAM on board memory. This board supports micro SD card, eMMC, SATA 3.0 or M.2 NVME SSD devices as its storage.
A Linux bootloader called Petitboot is pre-installed to simplify multi-OS boot on different storage devices. It also supports on-the-fly OS downloading and installation via network (ethernet).
For business or industrial users looking for a long term solution, this board is slated to be in the production for at least until the year 2036.
** BONUS: A CR2032 RTC coin cell battery is included for free (while stock lasts) for all delivery within Peninsular Malaysia. Unfortunately due to air shipping restrictions, we cannot include it for other destinations.

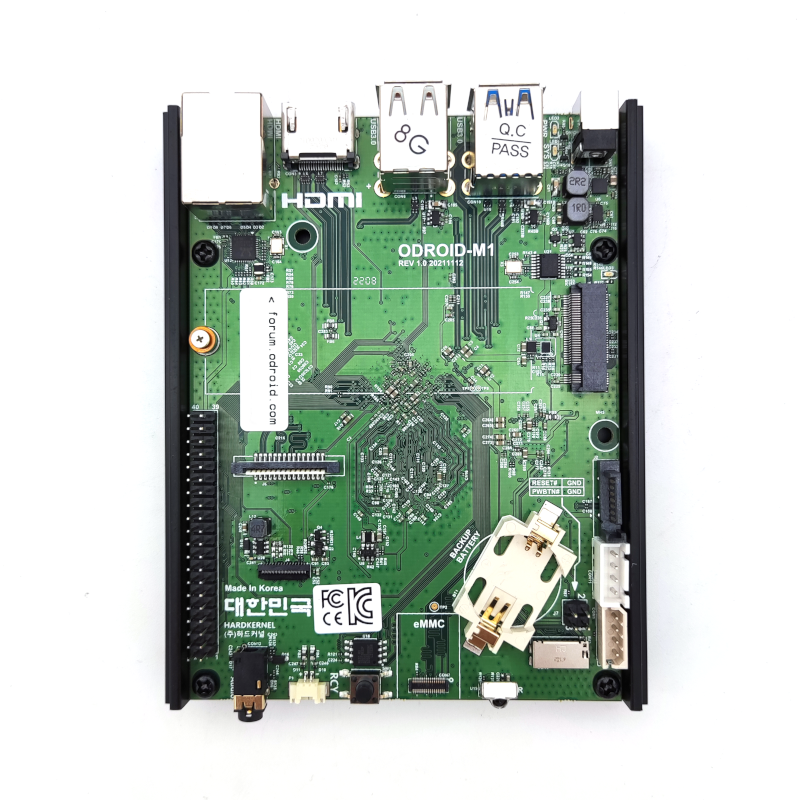

Board Dimensions: 90mm x 122mm x 16mm
Heatsink Dimensions: 100mm x 123mm x 19mm
Weight: 253 g including heatsink
PROCESSOR
Rockchip RK3568 Processor
L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor
L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor
L3 data cache: 512KB , 16-way set associative (512 sets), 64 byte lines, shared by 4 processorsQuad-Core Cortex-A55 (1.992GHz)
ARMv8-A architecture with Neon and Crypto extensions
Mali-G52 MP2 GPU with 4 x Execution Engines (650Mhz)
NPU
0.8Tops@INT8, integrated high-performance AI accelerator RKNN NPU
Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
MEMORY
4 or 8GiB LPDDR4 with 32-bit bus width
Data rate: 3120 MT/s, up to 1,560MHz
STORAGE
1 x eMMC slot
1 x Micro SD slot (DS/HS mode up to UHS-I SDR104)
1 x NVME M.2 SSD (PCIe 3.0 x 2), size 22 x 80 mm, M-Key
1 x SATA3.0
NETWORKING
1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)
– Realtek RTL8211F (Ethernet transceiver)
– LED indicators
* Green LED: Flashing by data traffics at 100Mbps connection
* Amber LED: Flashing by data traffics at 1000Mbps connection
VIDEO
1 x HDMI 2.0 (up to 4K@60Hz with HDR, EDID)
1 x MIPI-DSI (works with 800 x 1280 LCD)
AUDIO
1 x 3.5mm phone jack
1 x mono speaker output
1 x HDMI sound
EXTERNAL I/O
2 x USB 2.0 host port
2 x USB 3.0 host port (or 1 x USB 3.0 host + 1 x USB 2.0 OTG port)
1 x Debug serial console (UART, 1.5Mbps N81)
1 x SATA Connector
1 x MIPI-CSI Camera Interface (15 pin)
1 x MIPI-DSI LCD Interface (31 pin)
1 x 40pin GPIO header
OTHER FEATURES
IR receiver for remote controller
RTC and backup battery holder (to keep time and date for several months without main power input)
System LED Indicators:
– Red (POWER) – Solid light when DC power is connected
– Blue (ALIVE) – Flashing “heartbeat” while Kernel is running. Solid On when in the u-boot stage.
POWER
1 x DC jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm
DC input : 7.5V ~ 15.5V
– DC 12V/2A power adapter is recommended
– IDLE : ≃ 1.25W
– CPU Stress : ≃ 4.44W (Performance governor)
– Power Off : ≃ 0W
