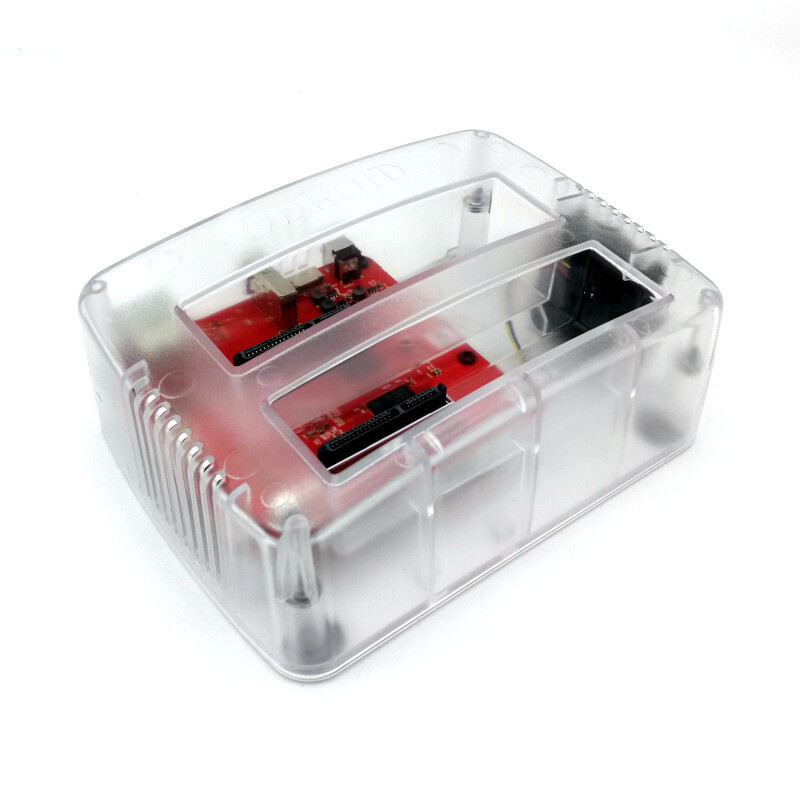

Odroid-HC4 is a mini computer specifically designed to run as a 2-bay Network Attached Storage (NAS). The board came pre-installed with a transparent plastic case in a "Toaster" form factor. It has two SATA slots that you can put in 3.5-inch or 2.5-inch HDD or SSD. These storage drives are not included. Odroid-HC4 is powered by Amlogix S905X3 quad-core processor mated with 4GB of RAM. Odroid-HC4 has a 5.5mm DC barrel jack for power, a Gigabit Ethernet port, a HDMI 2.0 port, a single USB 2.0 port and a UHS-1 compatible micro SD card slot. All connectors are available on the rear side of the case.
Board Dimensions: 84mm x 90.5mm x 25.0mm
Heatsink Dimensions: 40mm x 32mm x 10mm
Weight: 280g including heatsink, fan and case
Processor
Amlogic S905X3 Processor
L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor
L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor
L3 data cache: 512KB , 16-way set associative (512 sets), 64 byte lines, shared by 4 processors
Quad-Core Cortex-A55 (1.800GHz)
ARMv8-A architecture with Neon and Crypto extensions
Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory
DDR4 4GiB with 32-bit bus width
Data rate: 2640 MT/s (PC4-21333 grade)
1.2Volt low power design
Storage
1x Micro SD slot (DS/HS mode up to UHS-I SDR104)
Networking
1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)
- Realtek RTL8211F (Ethernet transceiver)
- LED indicators
* Green LED: Flashing by data traffics at 100Mbps connection
* Amber LED: Flashing by data traffics at 1000Mbps connection
Video
1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio
1 x HDMI digital output
Cooler
1 x Passive heatsink ( 40x32x10 mm ) on the CPU of PCB board
1 x Hydraulic Bearing FAN
- Rated Voltage : 5V
- Rated Current : 100mA
- Max Speed RPM : 4,000
- Air Flow CFM : 4.3
- Air Pressure (In H2O) : 0.053
- Noise Level(dBA) : 23.9
- Dimension : 40 x 40 x 10.6 mm
- Wire & Connector : 80mm, 4 pin 1.25mm pitch
External I/O
1 x USB 2.0 host port
1 x Debug serial console (UART)
2 x SATA Connectors
Other features
IR receiver for remote controller
System LED Indicators:
- Red (POWER) – Solid light when DC power is connected
- Blue (ALIVE) – Flashing like heartbeat while Kernel is running.
Power
1 x DC jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm
DC input : 14.5V ~ 15.5V

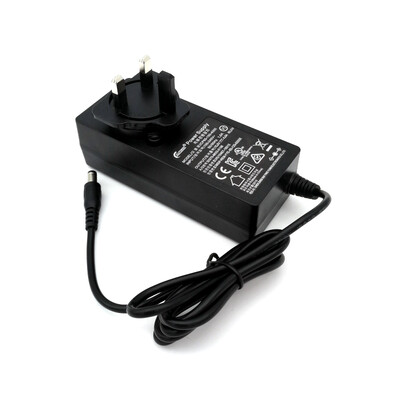

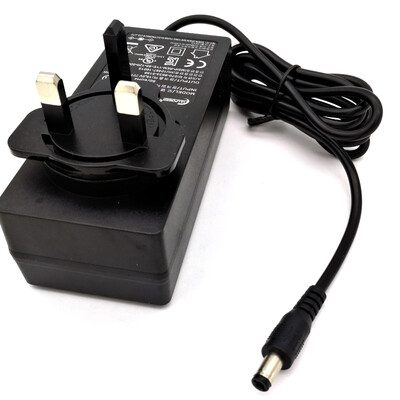

- DC 15V/4A power adapter is recommended
Power consumption with two ST2000DM006 HDDs :
- IDLE(with HDD in spin-down) : ≃ 5.88W
- Active(using SAMBA): ≃ 15.59W
- Suspend: ≃ 0.29W
