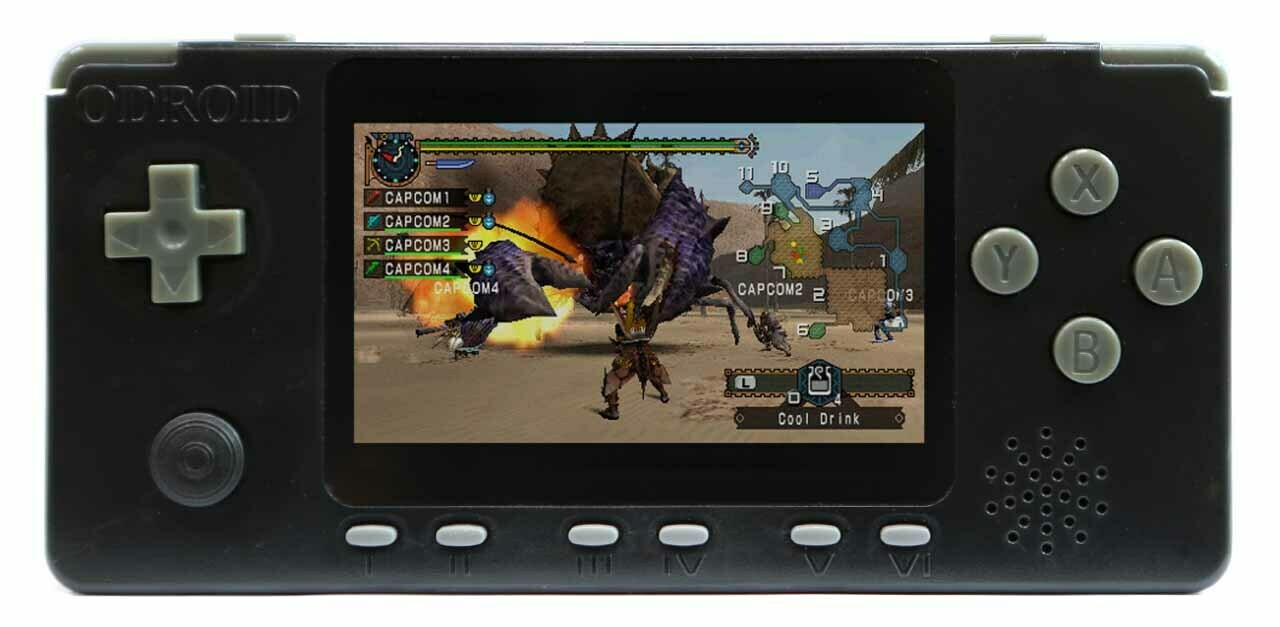

Odroid-Go Advance is a RockChip RK3326 based handheld retrogame emulator kit. This kit is designed for you to assemble it together by yourself, making it a fun and educational tool to learn about hardware and software for this device.
This item is the Advance - Black Edition with Black PCB rev. 1.1. Among the additional features are:
USB-C port for power/charging
802.11n WiFi module on-board
L2 and R2 shoulder buttons added
* This product contains Li-ion battery. Due to air transport regulation, shipping is restricted to Peninsular Malaysia only
* Be sure to go through and follow strictly the assembly guide (linked below). Parts are delicate and require extra care
* A micro SD card is required to get it running (not included). Due to copyright laws, we do not sell pre-loaded micro SD card for this product
SPECIFICATIONS
Processor
CPU : RockChip RK3326(Quad-Core ARM Cortex-A35 1.3GHz)
GPU : Mali-G31 Dvalin
Li-Polymer 3.7V/3000mAh, Up to 9 hours of continuous game playing time
DC Jack
5V input, USB-C power connector: A USB-C charging cable is included in the package.
External I/O
USB 2.0 Host x 1, 10Pin port(I2C, GPIO, IRQ at 3.3Volt)
Input Buttons
F1, F2, F3, F4, F5, F6, A, B, X, Y, Direction Pad, Left Shoulder, Right Shoulder, Left Shoulder2, Right Shoulder2, Analog joystick
Wireless
Built-in 2.4Ghz 802.11b/g/n (ESP-WROOM-S2)
Power consumption
Game emulation: 300 ~ 550mA (depends on backlit brightness and type of game emulations and the wireless usage)
Power off mode: <1mA
If you turn off the WiFi, the power consumption will be same as the previous Revision 1.0.
Charging time
2.5~3 hours when the device turns off. When you play game, it takes 4~5 hours.
Dimensions
155x72x20 mm (6.1×2.8×0.8 inch), Weight: 180 g (6 oz)
