Odroid-C2 - 1.5GHz Quad Core CPU, 2GB RAM, Gigabit Ethernet

Store/Components/Discontinued
RM242.00
Sold out
Sold out
Save this product for later
Share this product with your friends
ShareSharePin it
Odroid-C2 - 1.5GHz Quad Core CPU, 2GB RAM, Gigabit Ethernet
Store/Components/Discontinued
Product Details
Processor: 1.5GHz Quad-Core Amlogic S905
RAM: 2GB DDR3
Warranty: 30 Days

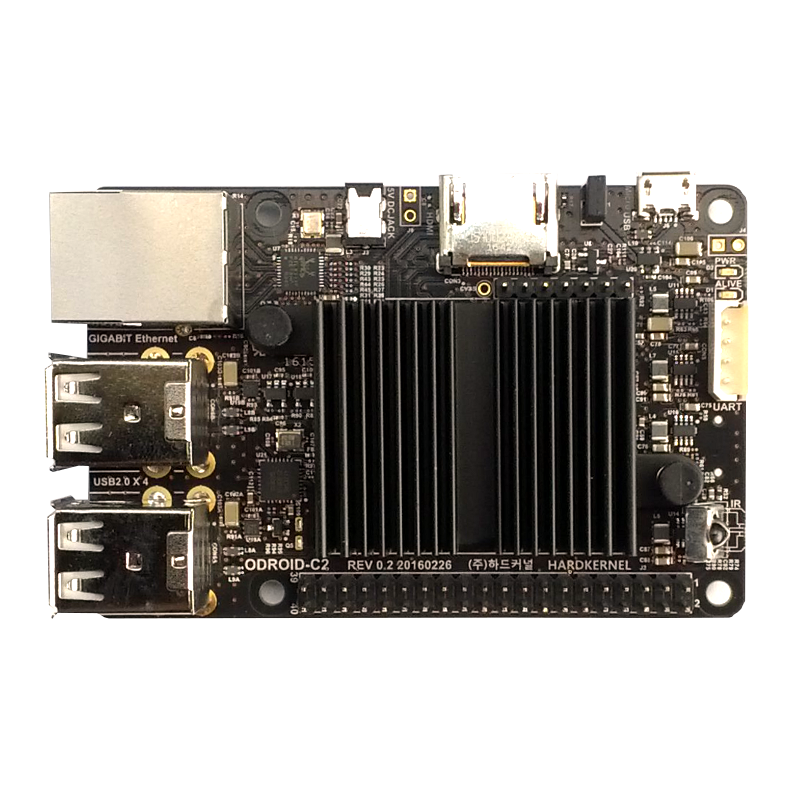

Odroid-C2 is another powerful Single Board Computer from HardKernel. It runs on a 1.5 GHz, quad-core ARM Cortrex-A53 S905 SoC from Amlogic with 2 GB DDR3 SDRAM on board.

This board can run Ubuntu Linux or Android operating system installed in a micro SD card or eMMC module. There are 2 ways of powering it with a 5V power supply - using a standard micro USB connector or 2.5mm barrel jack.


Odroid-C2 highlights:

  • Dedicated gigabit Ethernet chipset - independent of USB chip for faster data transfer
  • Analog inputs - useful for analog sensors connection
  • Great as a media player - 4K display output, support codecs including H.265, IR receiver integrated, I2S capable for high-end external audio DAC board
  • Comes with heatsink attached to the main chips


Technical details:

  • Amlogic ARM® Cortex®-A53(ARMv8) 1.5Ghz quad core CPUs
  • Mali™-450 GPU (3 Pixel-processors + 2 Vertex shader processors)
  • 2Gbyte DDR3 SDRAM
  • Gigabit Ethernet
  • HDMI 2.0 4K / 60Hz display
  • H.265 4K / 60FPS and H.264 4K / 30FPS capable VPU
  • 40pin GPIOs + 7pin I2S
  • eMMC5.0 HS400 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
  • USB 2.0 Host x 4, USB OTG x 1 (power + data capable)
  • Infrared(IR) Receiver
  • Ubuntu 16.04 or Android 5.1 Lollipop based on Kernel 3.14LTS
  • Dimension: 85 x 56 x 18 mm approx. (Weight : 40 gram w/o heat sink, 56 gram with heat sink)


These are recommended accessories (not included) to get you started:

  • Micro USB power supply
  • USB to 2.5mm DC power cable and USB port power supply
  • Micro SD card preloaded with Linux/Android or eMMC module
  • Standard HDMI cable - to be connected to a TV or monitor


Useful links:

  • User forum/discussion
  • Wiki page
  • User manual
Show More
You May Also Like
On Sale

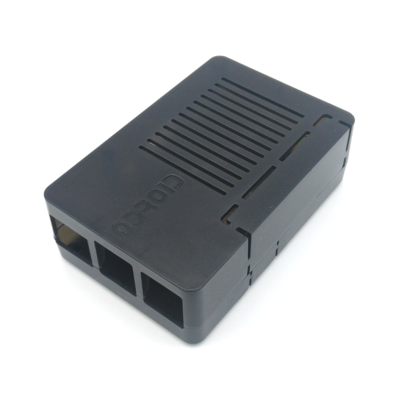

Odroid-C2/C1+ Case
