Odroid-C1+ - 1.5GHz Quad Core CPU, 1GB RAM, Gigabit Ethernet
+8
+7
+6
+5
+4
+3
+2

Odroid-C1+ - 1.5GHz Quad Core CPU, 1GB RAM, Gigabit Ethernet

Store/Components
RM180.00
Sold out
Was RM199.00 Save RM19.00
Sold out
Save this product for later
Share this product with your friends
ShareSharePin it
Odroid-C1+ - 1.5GHz Quad Core CPU, 1GB RAM, Gigabit Ethernet
Store/Components
Product Details
Processor: 1.5GHz Quad-Core Amlogic S805
RAM: 1GB DDR3
Warranty: 30 Days

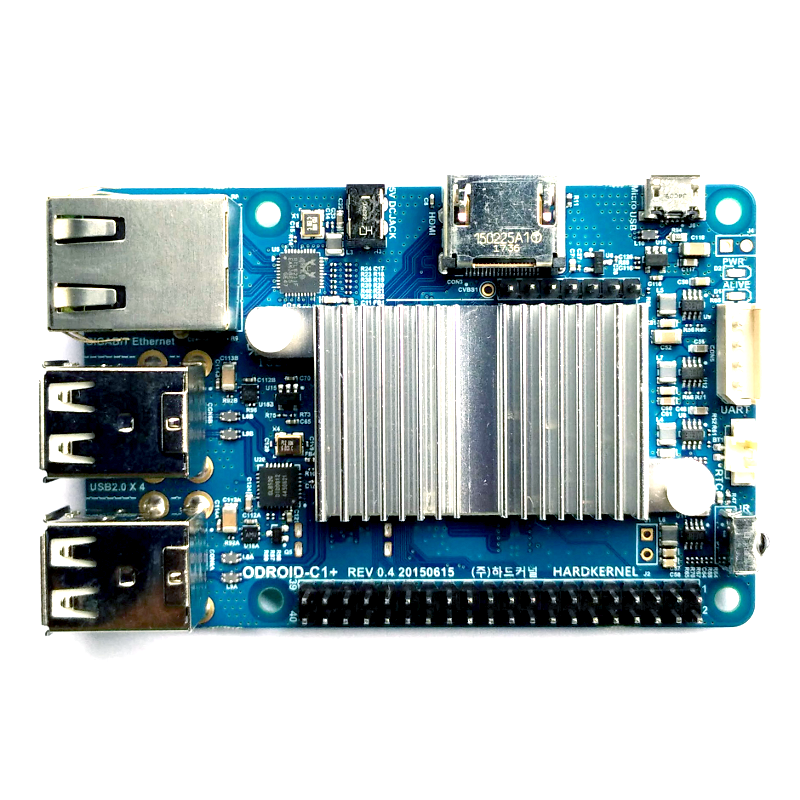

Odroid-C1+ is a serious contender to the Raspberry Pi board thanks to the similar form factor and price point. It runs on a 1.5GHz, quad-core Cortrex-A5 S805 SoC from Amlogic, which appear to offer a performance edge over the Pi 2’s 900MHz, quad-core Cortex-A7 Broadcom BCM2836 SoC.

This board can run Ubuntu Linux or Android operating system installed in a micro SD card or eMMC module. There are 2 ways of powering it with a 5V power supply - using a standard micro USB connector or 2.5mm barrel jack.


The Odroid-C1+ has several advantages compared to the other similar SBCs:

  • Dedicated gigabit Ethernet chipset - independent of USB chip for faster data transfer
  • Analog inputs - useful for analog sensors connection
  • Great as a media player - support codecs including H.265, IR receiver integrated, I2S capable for high-end external audio DAC board
  • Comes with heatsink attached to the main chips




Technical details:

  • Amlogic ARM® Cortex®-A5(ARMv7) 1.5Ghz quad core CPUs
  • Mali™-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
  • 1Gbyte DDR3 SDRAM
  • Gigabit Ethernet (10/100/1000Mbps Ethernet on RJ-45 jack)
  • 40pin GPIOs + 7pin I2S
  • eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
  • USB 2.0 Host x 4, USB OTG x 1 (power + data capable)
  • Infrared(IR) Receiver
  • Ubuntu or Android OS
  • Dimension: 85 x 56 x 18 mm approx. (Weight : 40 gram w/o heat sink, 56 gram with heat sink)


The C1+ is the improved version of the original C1.

It replaced the original C1 in July 2015. Compared to the C1, the C1+ has :

  • Standard Type-A HDMI connector
  • An included heat sink on board
  • An I2S bus to support HiFi audio add-on boards
  • CEC function that doesn't require the RTC backup battery
  • You can power the board USB OTG port OR the 2.5mm DC barrel connector
  • Improved SD-card compatibility


These are recommended accessories (not included) to get you started:

  • Micro USB power supply
  • USB to 2.5mm DC power cable and USB port power supply
  • Micro SD card preloaded with Linux/Android or eMMC module
  • Standard HDMI cable - to be connected to a TV or monitor


Useful links:

  • User manual
  • User forum/discussion
  • Wiki page
