Mini Perfboard - 4 cm x 6 cm
+2

Mini Perfboard - 4 cm x 6 cm

Store/Components
RM3.50
1
Save this product for later
Share this product with your friends
ShareSharePin it

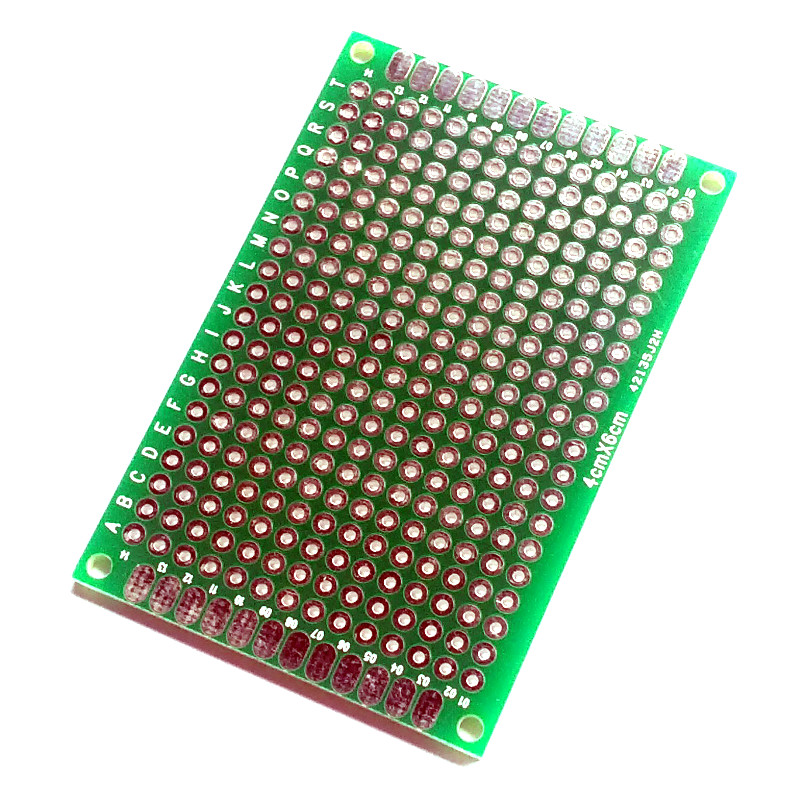

Mini Perfboard - 4 cm x 6 cm
Store/Components
Product Details

Once you are done bringing your idea on a schematic to reality using a solderless breadboard, you might want to move it to something more permanent. For this, you can use a perforated board or commonly known as perfboard.

A perfboard is a board with perforated holes surrounded by metal pads. You can securely solder components to these pads making more sturdy connections.

This is a mini 4 cm x 6 cm perfboard with a total of 280 holes arranged in a 20x14 matrix. The board has the standard 2.54mm (or 0.1") spacing between holes, suitable with many through-hole components. There are metal pads on both sides of the board and they are connected (plated through-holes), so you can solder your components on either side of the board. Each hole is electrically isolated from the other holes.

The board has mounting holes on all four corners. There are also extra solder pads on the sides.



Features:

  • 280 plated-through holes
  • Dimensions: 4 cm x 6 cm
  • Thickness: 1.6 mm
  • Hole spacing: 2.54 mm x 2.54 mm grid pattern
