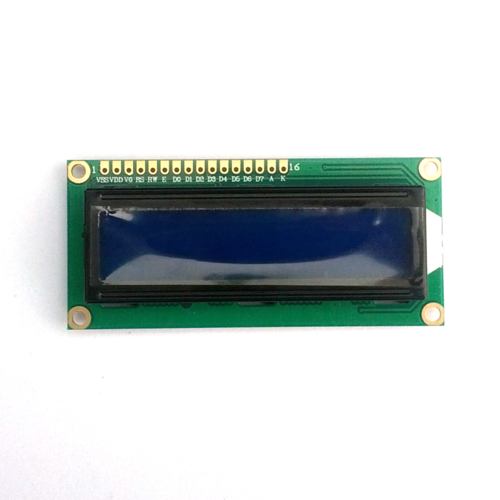

This is an industrial standard 16 characters x 2 lines LCD module that uses the common HD44780 compatible interface. It runs on 5V with white characters on blue backlight.

We also have a similar LCD module that runs on 3.3V.

Specifications:

• Display: 16 characters x 2 lines
• Power supply voltage: 5v
• Controller: SPLC780C or equivalent (HD44780 compatible)
• Interface: Parallel (16-pin contact)
• Backlight colour: Blue
• Character colour: White
• Dimension: 80 x 36 x 12.6 mm

Included:

• A 16-pin header to make interfacing easier. You have to solder the header strip yourself but it is very easy to do.
