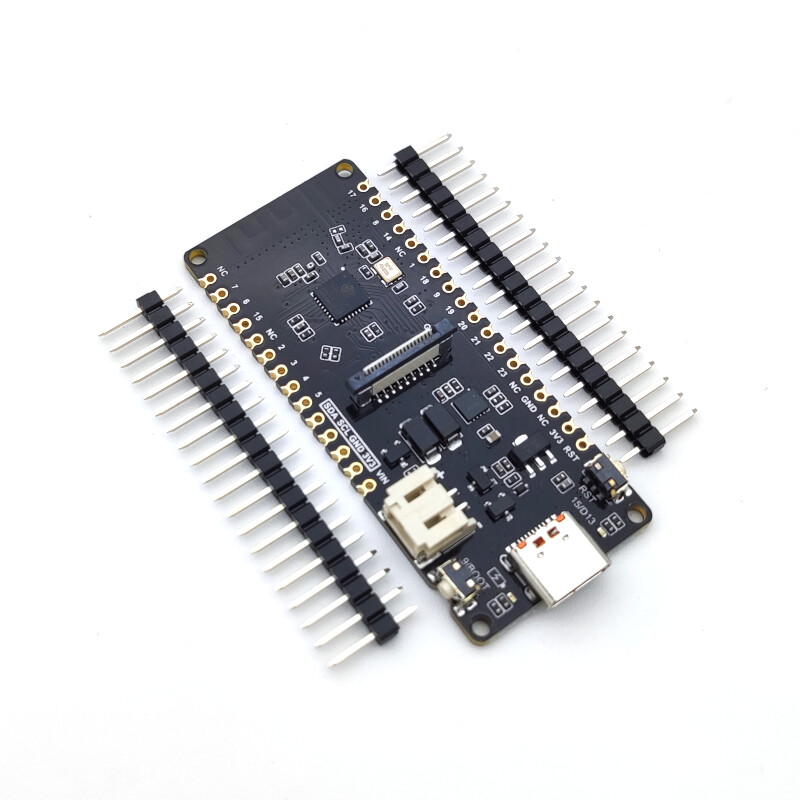

ESP32-C6 Development Board (FireBeetle 2)

Store/Components
RM41.00
NEW
Multi-protocol Low Power IoT Controller
1
Save this product for later
Share this product with your friends
ShareSharePin it
ESP32-C6 Development Board (FireBeetle 2)
Store/Components
Product Details

The FireBeetle 2 ESP32-C6 is a low-power Internet of Things (IoT) controller board designed to support multiple communication protocols namely Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3.

This board supports multiple power supply options, including USB Type-C power, 5V DC pin, and solar charging for lithium batteries managed by a solar power manager, which optimizes the power usage and ensures efficient energy management, providing a range of choices for deployment.


Useful links:

  • Manufacturer's wiki page
  • ESP32-C6 datasheet


Technical Specifications:


Basic Parameters

  • Operating Voltage: 3.3V
  • Type-C Input Voltage: 5V DC
  • VCC Input Voltage: 5V DC or 4.5-6V Solar Panel
  • Max Charging Current: 0.5A
  • Sleep current: 16uA (in deep sleep mode, powered by battery)
  • Operating Temperature: -10~60℃
  • Dimension: 25.4x60mm/1x2.36”

  • Hardware Information

  • Processor: RISC-V single-core processor
  • Main Frequency: 160 MHz
  • SRAM: 512KB
  • ROM: 320KB
  • Flash: 4MB
  • RTC SRAM: 16KB
  • USB: USB 2.0 CDC

  • WIFI

  • WIFI Protocol: IEEE 802.11b/g/n
  • IEEE 802.11ax (20 MHz-only non-AP mode)
  • Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
  • WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
  • WIFI Frequency: 2.4GHz
  • Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

  • Bluetooth

  • Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
  • Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

  • IEEE 802.15.4

  • Compatible with IEEE 802.15.4-2015 protocol
  • Frequency band: 2.4GHz
  • Data rate: 250Kbps
  • Supports Thread 1.3 and Zigbee 3.0

  • Ports

  • Digital I/O x19
  • LED PWM 6 Channel
  • SPI x1
  • UART x3 (LP UART x1)
  • I2C x2 (LP I2C x1)
  • I2S x1
  • IR Transceiver: transmit channel x5, receive channel x5
  • 1 × 12-bit SAR ADC, 7 Channel
  • DMA Controller: transmit channel x3, receive channel x3
