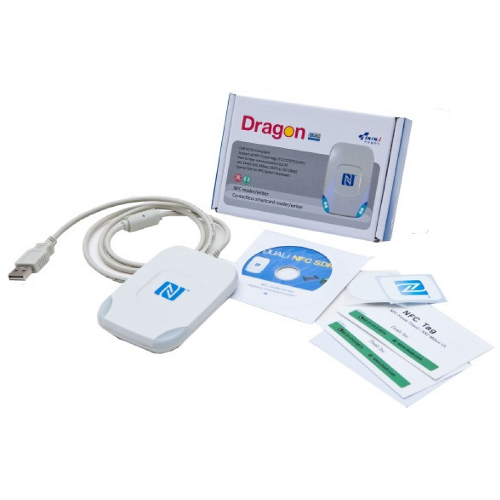

*The image is for illustration purpose only. Please refer to the package contents.
DUALi Dragon EDK is a collection of useful hardware, software and sample programming codes to help you to develop NFC applications.
It includes a Dragon NFC reader - an NFC Forum certified device. You also will get a few NFC tags for testing.
The ready-to-use NFC Manager software is very helpful, simple and easy to use for software developers as well as for those who does not possess programming background. It is a Windows application that allows you to read and write NFC tags with NDEF messages using the Dragon reader. It also supports messaging between the reader and an Android phone as well.
To help you understand how to write codes for reader and tag communication, a collection of Java programming source codes are included. The codes demonstrate what the Dragon NFC reader is capable of.
Package contents:
NFC Reader
1x DUALi Dragon NFC Forum Certified Contactless Reader
Test card/tag
3x Ultralight PVC cards
Software
NFC Manager Software
a handy and ready-to-use Windows application to read and write NDEF messages on NFC tags or Android mobile devices
able to perform essential NFC operations
automatic tag/device detection
display tag UID
format NFC tag
NFC tags/IC supported
NXP Mifare Classic 1K and 4K
(NFC Forum Tag Type 1) Innovision Topaz IRT5011
(NFC Forum Tag Type 2) NXP Mifare Ultralight, Mifare Ultralight C, NTAG203/213/216, Infineon my-d NFC SLE 66R01P, my-d NFC SLE 66R32P, Kovio 2k (K14T1)
(NFC Forum Tag Type 3) Sony FeliCa
(NFC Forum Tag Type 4) NXP Mifare DESFire EV1
reads and writes 5 types of record (NDEF)
Text Record
URI Record
Smart Poster Record
VCard Record
Android Application Record
able to do a peer-to-peer (P2P) communication between the Dragon reader and NFC enabled Android devices (via NPP and/or SNEP)
Sample Java programming source codes
Demonstrate basic commands used to communicate with the tags and readers
