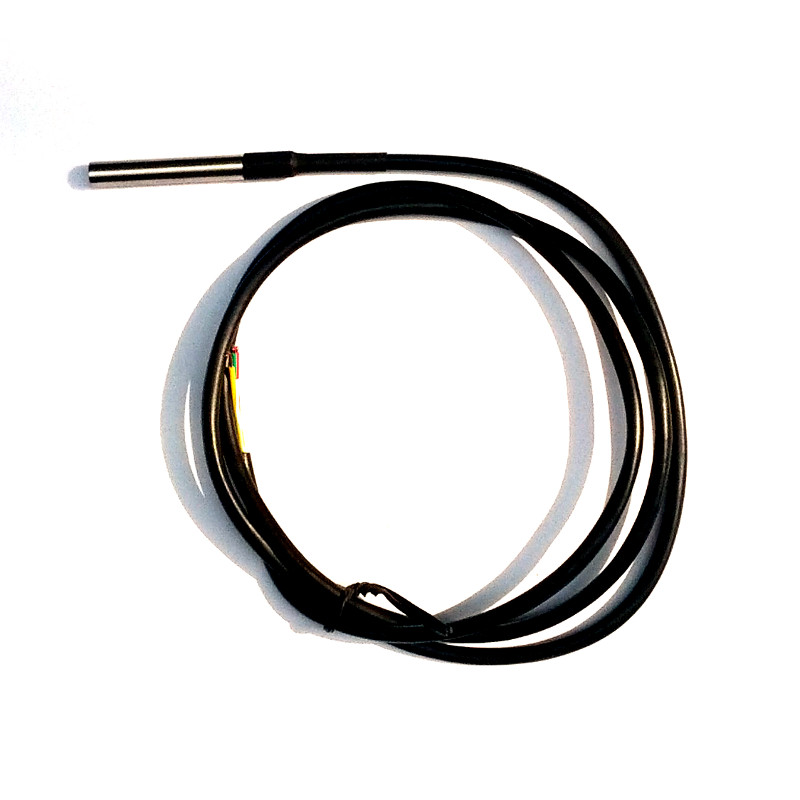

This temperature probe is made of DS18B20 temperature sensor chip, pre-wired and nicely waterproofed. The cable length is about 1 meter long, very handy to measure things in real life. The probe head is covered with high quality stainless steel housing, making it waterproof to measure liquid matter.
This is by far one of the most simplest sensor to hookup to your Raspberry Pi with 1-wire interface. It is supported directly by the Raspbian Linux distribution kernel.
Cable specifications:
Stainless steel cylindrical probe head - 6mm diameter x 50mm long
Cable length: approx. 1 meter
3 wires:
Red (Vcc)
Green (Data)
Yellow (Ground)
DS18B20 specifications:
1-wire interface (only 1 data line is required)
Power supply range: 3.0V to 5.5V
Measures temperature from -55°C to +125°C
±0.5°C Accuracy from -10°C to +85°C
Multiple sensors can be connected to the same data line for multi-points measurement
