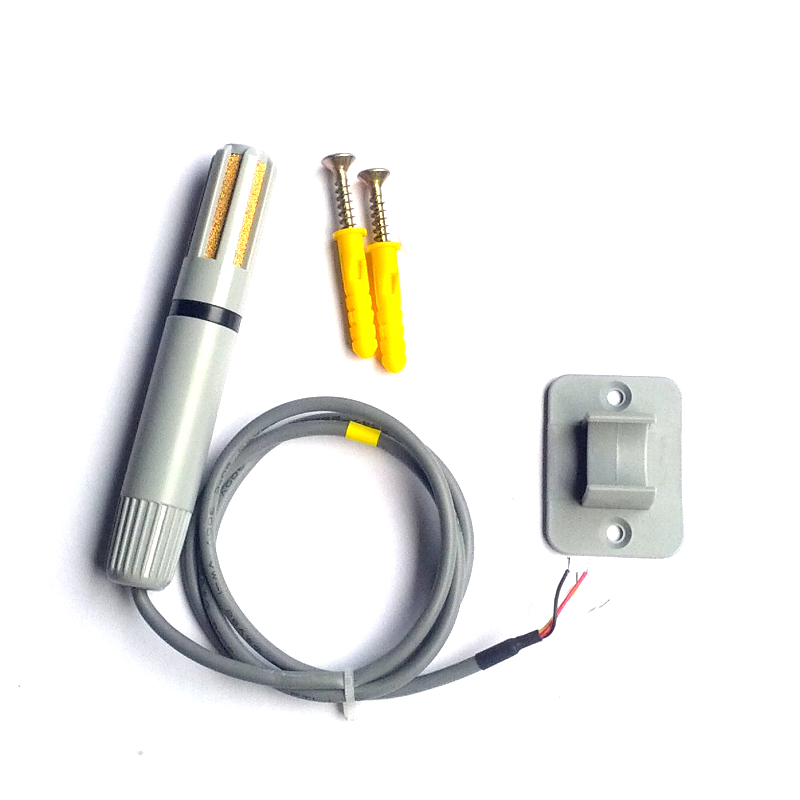

AM2315 is a high precision and high performance humidity and temperature sensor. This module is encased in a durable plastic housing making it suitable to be placed in most places.
This module uses a simple digital I2C interface that provides calibrated output data. It can be implemented with many boards with I2C bus which includes Raspberry Pi, Beaglebone Black and Arduino.
To connect this module, use the red wire for 5V power, black for ground, yellow for I2C data pin (SDA) and white for I2C clock pin (SCL). Two 10k Ohm pull-up resistors are required. Connect them from SDA and SCL wire to the power wire.
Screws and mounting bracket are included.
Technical details:
Operating voltage: 3.5V to 5.5V (Power and I/O), 5V recommended
Output current: 8 mA, typical
Communication protocol: I2C
I2C address: 0x5C
Humidity range: 0-100% humidity, 2%RH accuracy
Temperature range: -40°C to 125°C, ±0.1°C typical accuracy
