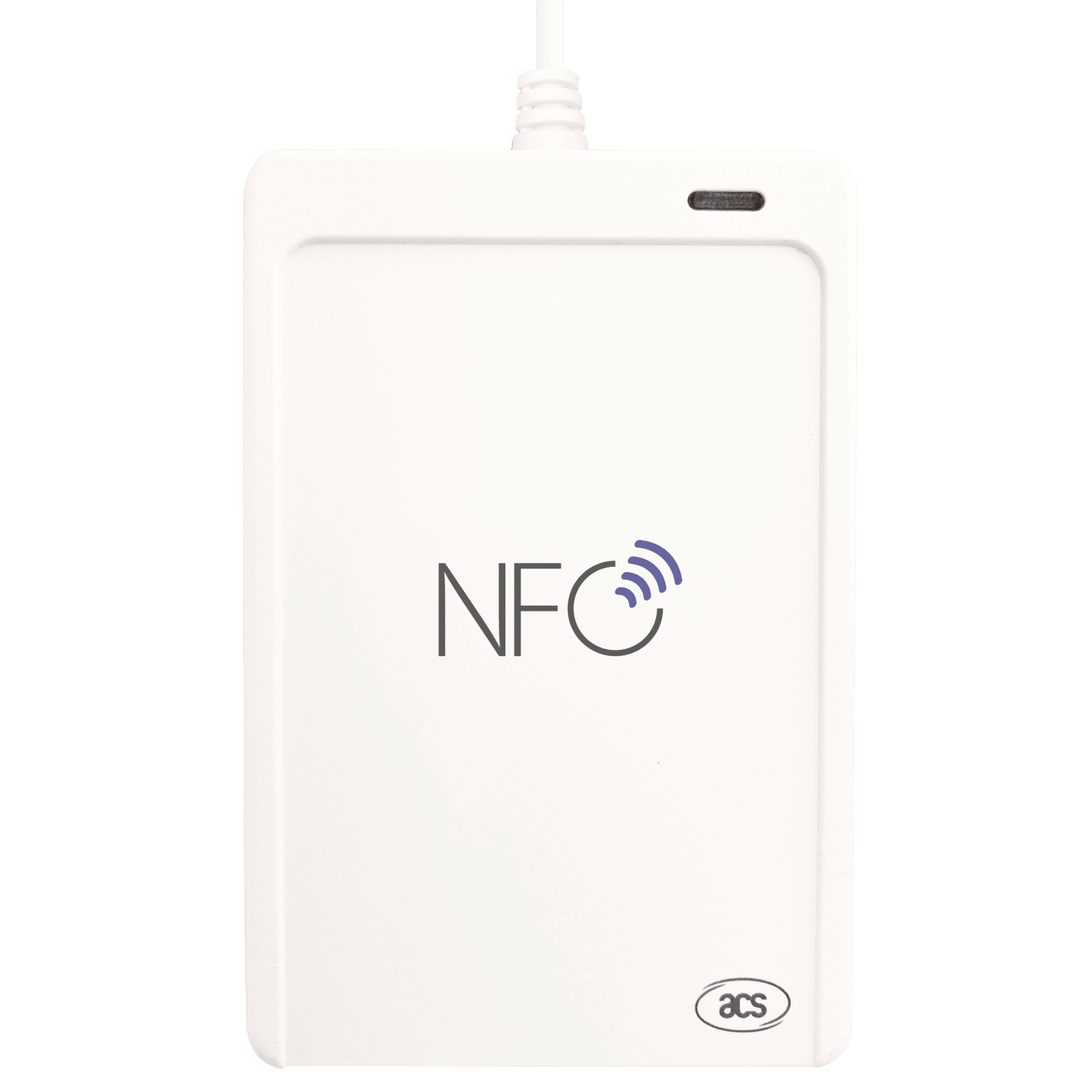

ACR1552U USB NFC Reader is one of the newer NFC reader designed to support three operating modes. They are namely:

• Reader/writer mode
• Card emulation mode
• Keyboard emulation mode (Write UID as keyboard entry. Windows-only configuration software can be downloaded here.)

It also has extensive support of various type of 13.56MHz contactless cards technologies including ISO 1443, ISO 18092, ISO 15693, Mifare and FeliCa.

Features:

• USB 2.0 Full Speed Interface
• CCID Compliance
• Contactless Smart Card Reader:
  • Read/Write speed up to 848 kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
  • Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
  • Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
  • Built-in anti-collision feature
  • Supports extended APDU (max. 64 kbytes)
  • One ISO7816-compliant SAM slot (Class A)
  • NFC Support
    • Smart Card Reader/Writer Mode
    • Card Emulation Mode
    • Keyboard Emulation Mode
• Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)
• Peripherals:
  • User-controllable bi-color LED (Blue & Green)
  • User-controllable buzzer (Monotone)
  • One SAM slot
• USB Firmware Upgradability
• Dimension: 98 mm x 65 mm x 12.8 mm

Related documents/link:

• Manufacturer's product page
• The latest manuals, datasheets and drivers for this reader can be downloaded here.

Note:

This reader does not come with any software to read/write NFC tags. You need to develop or acquire a 3rd party software to read/write NFC tags with this reader.
