This NFC reader/writer is unique in the sense that it has two operation modes - standalone and PC-linked. In standalone mode, it can work on its own. It doesn't need to be connected to a PC or a USB host to read/write NFC tags. But if you need to run your PC/SC application using PC-linked operation, it can support that with the built-in USB 2.0 full speed interface.

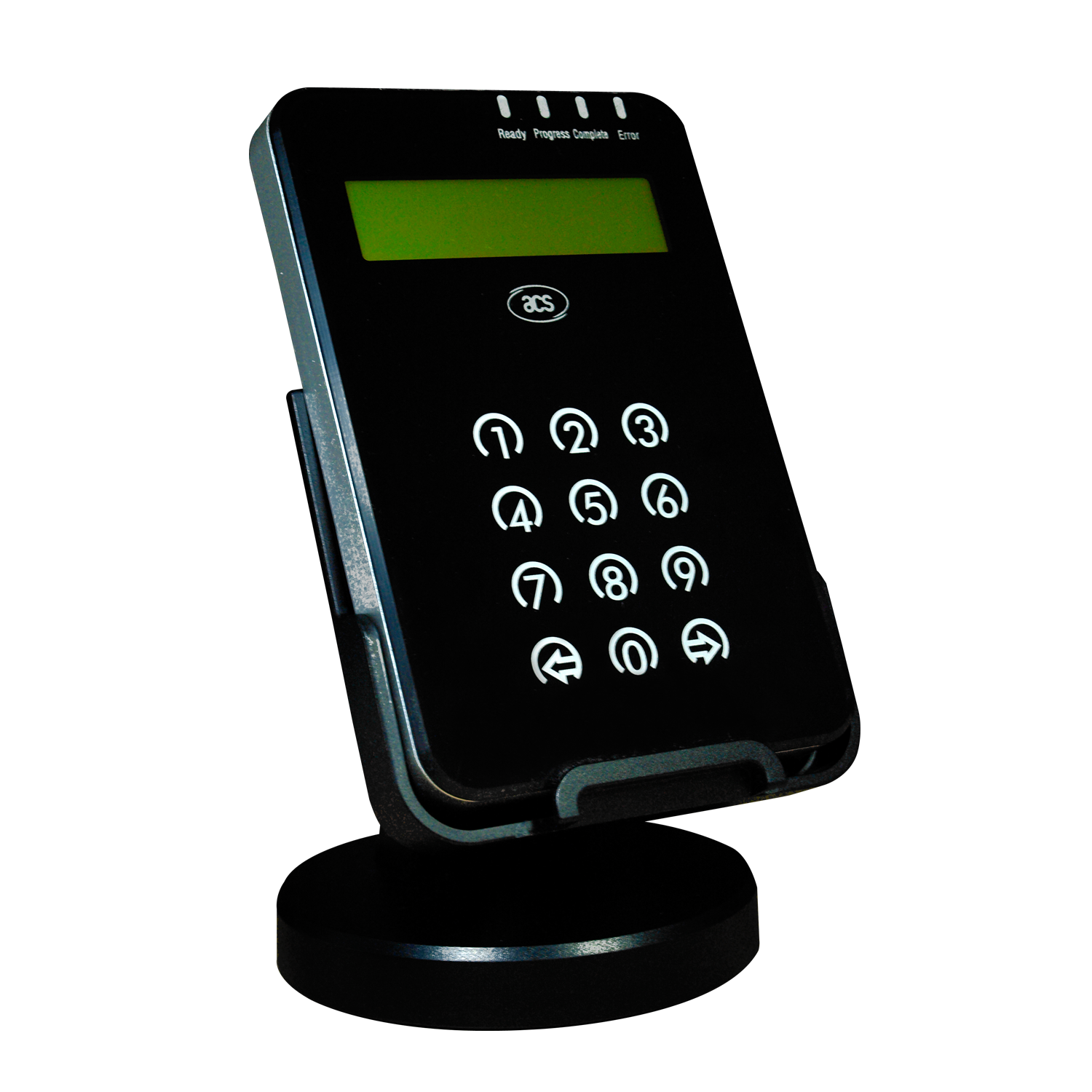

This reader comes with four built-in SAM slots, making it suitable for applications that have multiple card issues or different security requirements. For user interaction, it has two-line graphic LCD, four LEDs and buzzer to clearly display application and card operation status. Additionally, a twelve-key numeric capacitive touch keypad is prominently visible for user interaction (e.g. to key in PIN or password).
Under the hood is a 32-bit ARM Cortex processor. In standalone mode, it is supported by 400KB memory space for third-party application and 500KB memory space for data storage. In PC-linked mode, this reader supports PC/SC and CCID compliance.
Technical details:
Manufacturer: Advanced Card Systems
Interface: Standalone/USB 2.0 full speed
ARM 32-bit CortexTM-M3 Processor
Dual Operation Modes:
PC-linked
Standalone
PC-linked Operation:
USB 2.0 Full Speed Interface
CCID Compliance
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Standalone Operation:
Support for third-party application programming
Over 400 KB memory space for third-party application
Over 500 KB memory space for data storage
Supported development platforn:
IAR Embedded Workbench, Version 5.50 or above
CoIDE(GCC), Version 1.3.0 or above
Smart Card Reader:
Read/Write speed of up to 848 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Support for ISO 14443 Part 4 Type A and B and Mifare series
Built-in anti-collision feature (only one tag is accessed at any time)
Four ISO 7816 compliant SAM slots
Built-in Peripherals:
Two-line graphic LCD
Four user-controllable LEDs
User-controllable buzzer
Twelve-key capacitive touch keypad
Real-time clock (RTC) with independent back up battery
In-device AES (128 and 256), DES and 3DES encryption
