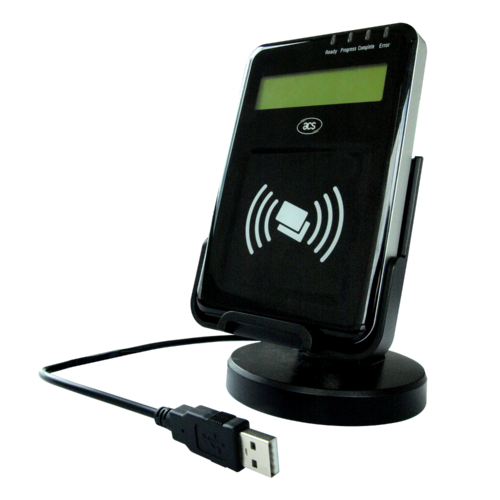

ACR1222L (USB) is a USB interface NFC contactless reader with LCD. This reader has two lines graphic LCD, four user controllable LEDs, a buzzer and three built-in SAM slots for enhanced security. It supports multiple protocol tags including Mifare, FeliCa and NFC Forum Tag Type 1 to 4.

• Interface: USB
• Design to support MIFARE® cards (Classics, DESFire), ISO14443 Types A and B, FeliCa cards, and NFC tags Type 1-4
• Dimension:
  • Main Body: 136.66 mm x 88.66 mm x 19.00 mm
  • With Stand: 158.33 mm x 95.00 mm x 95.00 mm
• Weight:
  • Main Body - 200 g
  • With Stand - 600 g

Related documents:

• ACR1222L Product Presentation
• ACR1222L Technical Specification
• ACR1222L Application Programming Interface

Note:

This reader does not come with any software. You need to develop or acquire a software to read/write NFC tags with this reader.

The latest manuals, datasheets and drivers for this reader can be downloaded here.
