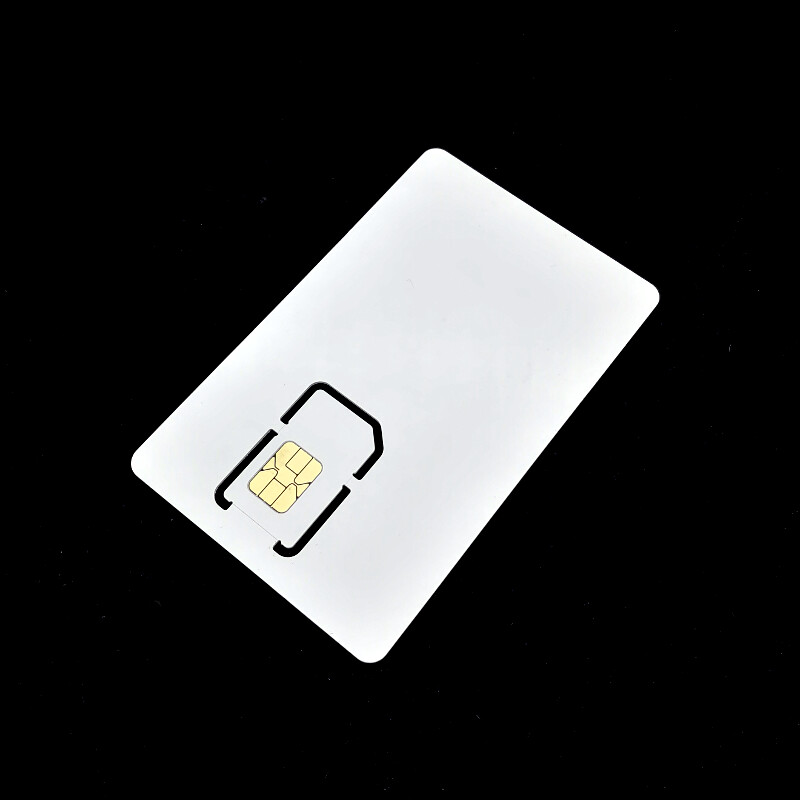

This is a Secure Access Module (SAM) contact card that can be used with NFC reader that has built-in SAM slot. A SAM card is used to store cryptographic keys to access application or data in a smart card. It allows your application to have an encrypted or authenticated communication to minimize security risk.
The ACOS6-SAM card can perform:
Mutual Authentication: To guarantee the authenticity of the terminal and the client card
Secure Messaging: To ensure that the data transmission between the card and terminal/server is secured and not susceptible to eavesdropping, replay attack and unauthorized modification
Purse MAC Computation: To authenticate and ensure data integrity of data and commands that are transferred into the card and vice versa
Key Diversification: To enable diversified entry of keys without exposing the master key
Secure Key Injection: To ensure the key injection from SAM to client cards for contactless cards with protection of Encryption and Message Authentication Code, besides, key(s) may be changed after injection
Technical details:
Full 64KB of EEPROM memory for application data
Compliance with ISO 7816 Parts 1, 2, 3, and 4
Supports high-speed transmission rate from 9.6 to 223.2 kbps
Supports ISO 7816 Part 4 File Structures: Transparent, Linear Fixed, Linear Variable, Cyclic
Supports DES/3DES/3K3DES
Supports AES128/AES-192
Supports hardware-based random number generator compliant to FIPS140-2
Supports Mutual Authentication and Session Key generation
Supports Secure Messaging function ensuring data transfers are confidential and authenticated
Supports Access Module pairs with ACOS3, ACOS6, ACOS7, ACOS10, Mifare Ultralight C, DESFire, DESFire EV1, and Mifare Plus cards
Stores and performs all key operations for mutual authentication, encrypted PIN submission, secure messaging, and e-Purse commands
