This is the kind of power supply that typically used in CCTV, access control or alarm system. It can be connected to an external Sealed Lead Acid (SLA) battery, functioning as a backup power to ensure uninterruptible operation in case of power failure. It accepts AC power input from the main and provide a 12V DC output. When the AC power is present, the power supply will charge the battery. When AC power is disconnected/interrupted, the battery will take over and supply 12V DC output. This AC and battery switching is seamless and does not require human intervention.
The external backup battery is not included.
Features:
Universal AC input
Small volume, light weight and high efficiency
Short circuit / overload protection
Uninterruptible Power Supply (UPS) function
AC and battery automatic switching, no human intenvention required
Cold start button - use battery to start operation when AC input is not present
Battery overcharging prevention
Low voltage battery protection

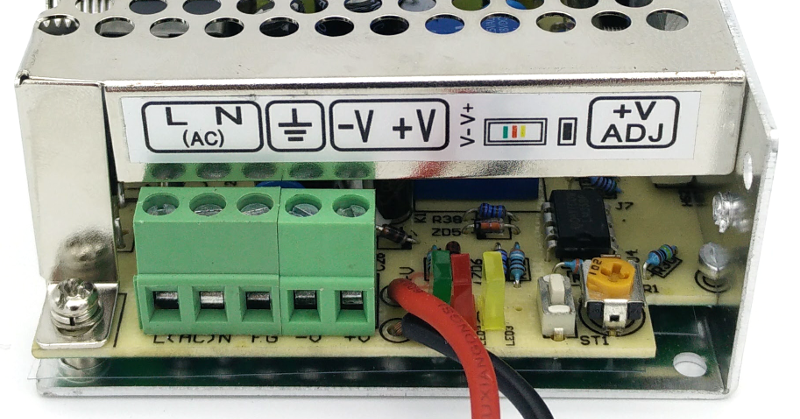

Power input/output terminal
Item from left to right
Function
Description
Screw terminal block (Live, Neutral, Ground)
AC input power
110V or 240V AC is accepted
Screw terminal block (-V, +V)
DC output power
12V DC to be connected to a load. Adjustable.
Red (+) and black (-) wire
Backup battery connection
F2 Faston connector to be connected to an external 12V DC lead acid battery
Green LED
DC output indicator
DC output is enabled
Red LED
AC input indicator
AC power is present
Yellow LED
Battery charging indicator
Backup battery is charging
Push button
Cold start
To get power from battery when no AC power is connected
Potentiometer
DC voltage adjustment
For adjusting DC output when AC input connected. Range: 11.8 - 14.9 V
