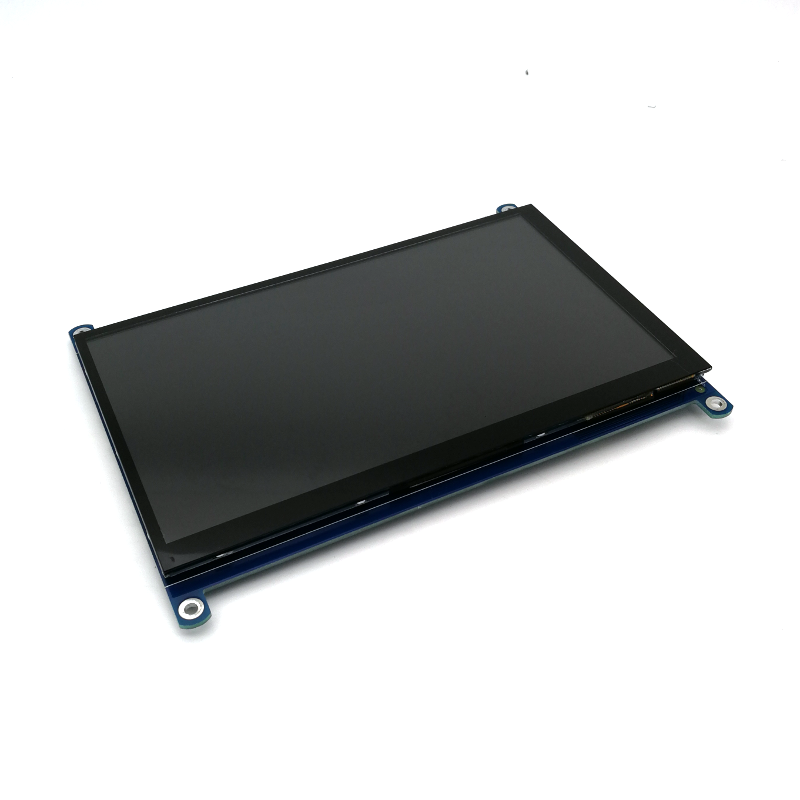

This is a 7-inch 1024 x 600 resolution display panel with capacitive touch control. Capacitive touchscreens are more responsive than resistive touchscreens because they do not rely on applied pressure from finger/stylus. This screen has HDMI input and designed to support various HDMI-capable Single Board Computers (SBC) running Linux OS like the Raspberry Pi, Tinker Board and Odroid. It also supports Windows 10/8.1/8 OS with no additional driver required. In addition to that, this screen also supports popular game consoles such as Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
The LCD and control board is nicely integrated together, with four mounting tab at each corner making it a good solution for a system with an embedded display. With touch screen and audio capability, this screen is great for many applications such as kiosks/vending machine, home automation, digital marketing device and many more.
If you are looking for the same display but enclosed in a housing, check it out here.
Touchscreen - Use the included micro USB cable to connect to the micro USB port labelled as "touch" at the back of the screen. This cable also serve power to the screen from the USB port of the computer/SBC. Most major OS supports the touchscreen function of this screen by default.
Audio - This screen supports HDMI audio output via 3.5mm headphone jack or a 4-pin speaker connector. You may purchase a pair of OPTIONAL 8Ω 5W enclosed stereo speaker that connects directly to the white connector at the back of the screen. This speaker measures 100 x 45 x 21 mm and comes with 4 tabs for mounting.
OSD Control - There are 5 push buttons that control the On Screen Display (OSD) menu of the screen. This menu allows you to adjust certain screen properties such as brightness, contrast, speaker volume etc.
