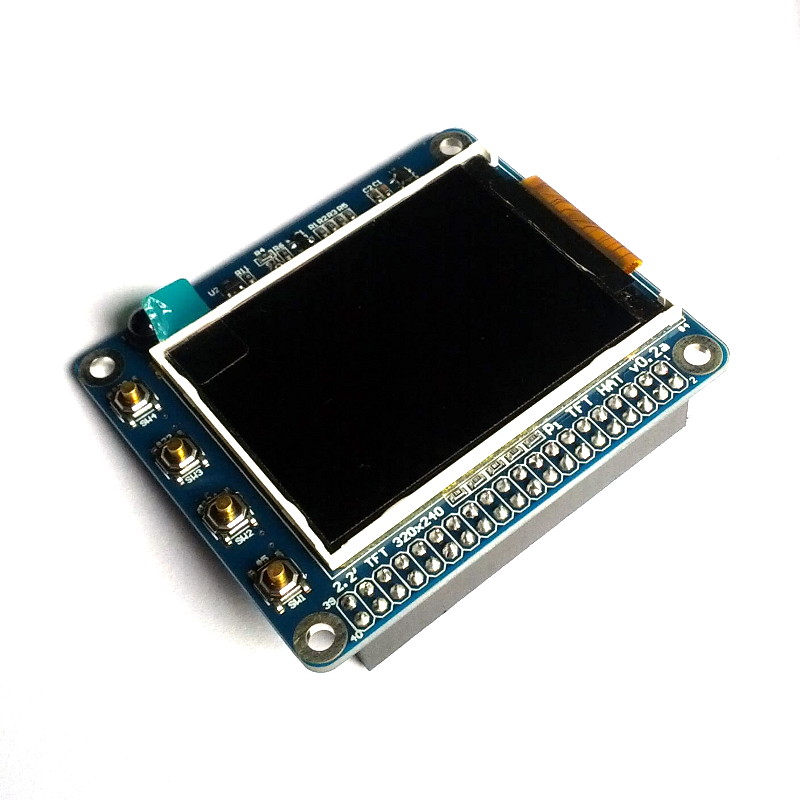

This is a standard HAT-sized (65mm x 56.5mm) expansion board for Raspberry Pi with a 2.2" TFT LCD screen. Featuring 320x240 resolution, the screen has a high pixels per inch (PPI) density to produce a high quality display output. The board is designed to plug directly onto the 40-pin GPIO of Raspberry Pi 2 Model B, Model B+ or Model A+. It doesn't support the older Model A or Model B boards. The board only serves as a display without touch control capability.

As an added value, the board has a total of 6 programmable buttons and an IR receiver to support user input features.

A great alternative to HDMI-based display especially if you need a small display. This screen is powered by the Pi itself and doesn't require any external driver board or power supply.

*Raspberry Pi board is not included

Features:

• Screen size: 2.2 inch
• Display resolution: 320 x 240 pixels (high Pixels Per Inch)
• Board size: 65mm × 56.5mm (standard HAT-sized board)
• LCD interface: SPI
• No touch screen function
• 6 programmable user push-buttons:
  • four buttons on the top connected to GPIO22, GPIO23, GPIO24, GPIO5
  • two buttons on the side connected to GPIO4 and GPIO17
• Infrared receiver on board (input pin = GPIO26)
• Compatible with Raspberry Pi 2 Model B, Raspberry Pi Model B+ and Raspberry Pi Model A+ (with 40 GPIO pins)
